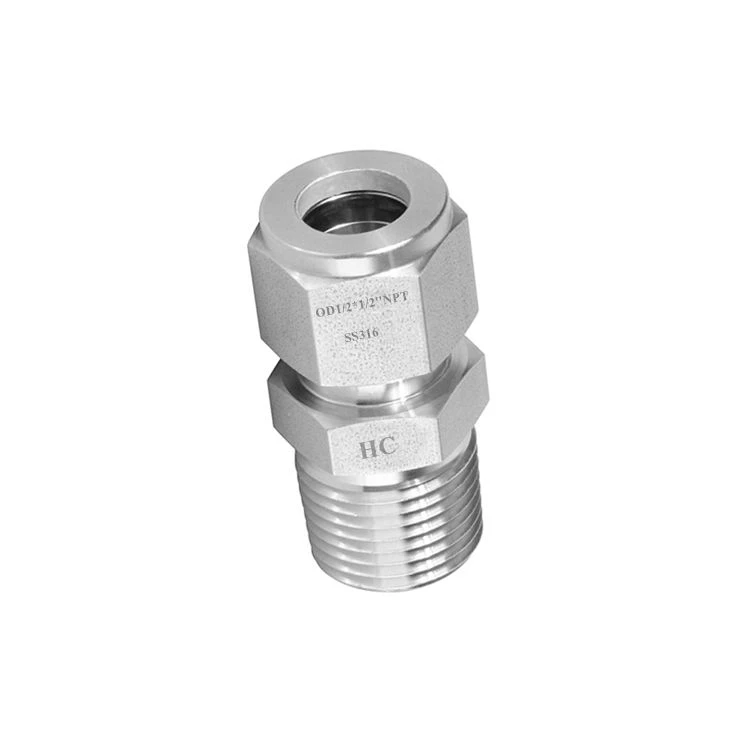

stainless steel Male Connector
Product Name : stainless steel tube male straight connector
Compression OD 1/2" NPT Straight Male Connector Stainless Steel Tube Fittings
Products Description
Product Name : stainless steel tube male straight connector
Compression OD 1/2" NPT Straight Male Connector Stainless Steel Tube Fittings
Product Information
| Product Name |
Stainless Steel Tube Fittings /tube connectors /compression male connector/ double ferrule male tube fittings |
|
Material |
316SS, 304SS, Carbon Steel, Aluminium, Brass |
|
Standard |
DIN GB ISO JIS BA ANSI API |
|
Body Type |
Double Ferrule Compression Tube Fittings |
|
Size Range |
Available in size: 1/16" to 1", and 2mm to 25mm. |
|
Thread |
ISO Tapered, NPT, BSPP, BSPT, JIS, SAE/MS Straight, G, R, JIC |
|
Working pressure |
3000-6000psi |
|
Nut |
Nut with silver plate to make use life more long |
|
Used |
Oil Gas Water Industrial and other non-corrosive or corrosive media6 male connectors |
|
Cleaning Process |
Standard Cleaning and Packaging male npt connectors |
|
Brand |
Huan cheng |
|
Country original |
Made in Zhejiang , china |
|
Delivery time |
10-50pcs normally have stock |
|
(NPT) Male Connector（in） |
|||||||
|
Part Number |
A |
P |
D |
W |
L |
||
|
|
in |
mm |
NPT |
mm |
in |
mm |
mm |
|
HC1-1-1 |
1/16 |
1.58 |
1/16 |
1.27 |
5/16 |
7.93 |
23.62 |
|
HC1-1-2 |
1/16 |
1.58 |
1/8 |
1.27 |
7/16 |
11.11 |
26.10 |
|
HC1-2-1 |
1/8 |
3.17 |
1/16 |
2.28 |
7/16 |
11.11 |
29.71 |
|
HC1-2-2 |
1/8 |
3.17 |
1/8 |
2.28 |
7/16 |
11.11 |
29.71 |
|
HC1-2-4 |
1/8 |
3.17 |
1/4 |
2.28 |
9/16 |
14.28 |
35.56 |
|
HC1-3-2 |
3/16 |
4.76 |
1/8 |
3.04 |
7/16 |
11.11 |
31.24 |
|
HC1-3-4 |
3/16 |
4.76 |
1/4 |
3.04 |
9/16 |
14.28 |
26.32 |
|
HC1-4-1 |
1/4 |
6.35 |
1/16 |
3.04 |
1/2 |
12.70 |
32.76 |
|
HC1-4-2 |
1/4 |
6.35 |
1/8 |
4.82 |
1/2 |
12.70 |
32.76 |
|
HC1-4-4 |
1/4 |
6.35 |
1/4 |
4.82 |
9/16 |
14.28 |
37.85 |
|
HC1-4-6 |
1/4 |
6.35 |
3/8 |
4.82 |
11/16 |
17.46 |
38.35 |
|
HC1-4-8 |
1/4 |
6.35 |
1/2 |
4.82 |
7/8 |
22.22 |
44.70 |
|
HC1-5-2 |
5/16 |
7.93 |
1/8 |
4.82 |
9/16 |
14.28 |
34.03 |
|
HC1-5-4 |
5/16 |
7.93 |
1/4 |
6.65 |
9/16 |
14.28 |
38.60 |
|
HC1-6-2 |
3/8 |
9.52 |
1/8 |
4.82 |
5/8 |
15.87 |
35.05 |
|
HC1-6-4 |
3/8 |
9.52 |
1/4 |
7.11 |
5/8 |
15.87 |
39.87 |
|
HC1-6-6 |
3/8 |
9.52 |
3/8 |
7.11 |
11/16 |
17.46 |
39.87 |
|
HC1-6-8 |
3/8 |
9.52 |
1/2 |
7.11 |
7/8 |
22.22 |
46.23 |
|
HC1-6-12 |
3/8 |
9.52 |
3/4 |
7.11 |
11/16 |
26.98 |
47.75 |
|
HC1-8-2 |
1/2 |
12.70 |
1/8 |
4.82 |
13/16 |
20.63 |
38.86 |
|
HC1-8-4 |
1/2 |
12.70 |
1/4 |
7.11 |
13/16 |
20.63 |
43.43 |
|
HC1-8-6 |
1/2 |
12.70 |
3/8 |
9.65 |
13/16 |
20.63 |
43.43 |
|
HC1-8-8 |
1/2 |
12.70 |
1/2 |
10.41 |
7/8 |
22.22 |
49.02 |
|
HC1-8-12 |
1/2 |
12.70 |
3/4 |
10.41 |
11/16 |
26.98 |
50.54 |
|
HC1-8-16 |
1/2 |
12.70 |
1 |
10.41 |
13/8 |
34.92 |
57.15 |
|
HC1-10-6 |
5/8 |
15.87 |
3/8 |
9.65 |
15/16 |
23.81 |
44.19 |
|
HC1-10-8 |
5/8 |
15.87 |
1/2 |
11.90 |
15/16 |
23.81 |
49.02 |
|
HC1-10-12 |
5/8 |
15.87 |
3/4 |
12.70 |
11/16 |
26.98 |
50.54 |
|
HC1-12-8 |
3/4 |
19.05 |
1/2 |
12.70 |
11/16 |
26.98 |
50.54 |
|
HC1-12-12 |
3/4 |
19.05 |
3/4 |
15.74 |
11/16 |
26.98 |
50.54 |
|
HC1-12-16 |
3/4 |
19.05 |
1 |
15.74 |
13/8 |
34.92 |
57.15 |
|
HC1-14-12 |
7/8 |
22.22 |
3/4 |
18.28 |
13/16 |
30.16 |
50.54 |
|
HC1-16-12 |
1 |
25.40 |
3/4 |
18.28 |
13/8 |
34.92 |
57.40 |
|
HC1-16-16 |
1 |
25.40 |
1 |
22.35 |
13/8 |
34.92 |
62.23 |
|
(NPT) Male Connector（mm） |
|||||
|
Part Number |
A |
P |
D |
W |
L |
|
|
mm |
NPT |
mm |
mm |
mm |
|
HC1-3mm-2 |
3 |
1/8 |
2.4 |
12 |
30.5 |
|
HC1-3mm-4 |
3 |
1/4 |
2.4 |
14 |
35.6 |
|
HC1-4mm-2 |
4 |
1/8 |
2.4 |
12 |
31.2 |
|
HC1-4mm-4 |
4 |
1/4 |
2.4 |
14 |
36.3 |
|
HC1-6mm-2 |
6 |
1/8 |
4.8 |
14 |
32.8 |
|
HC1-6mm-4 |
6 |
1/4 |
4.8 |
14 |
37.9 |
|
HC1-6mm-6 |
6 |
3/8 |
4.8 |
18 |
38.4 |
|
HC1-6mm-8 |
6 |
1/2 |
4.8 |
22 |
44.7 |
|
HC1-8mm-2 |
8 |
1/8 |
4.8 |
15 |
34.2 |
|
HC1-8mm-4 |
8 |
1/4 |
6.4 |
15 |
38.7 |
|
HC1-8mm-6 |
8 |
3/8 |
6.4 |
18 |
39.3 |
|
HC1-8mm-8 |
8 |
1/2 |
6.4 |
22 |
45.6 |
|
HC1-10mm-2 |
10 |
1/8 |
4.8 |
18 |
36.3 |
|
HC1-10mm-4 |
10 |
1/4 |
7.9 |
18 |
40.9 |
|
HC1-10mm-6 |
10 |
3/8 |
7.9 |
18 |
40.9 |
|
HC1-10mm-8 |
10 |
1/2 |
7.9 |
22 |
46.5 |
|
HC1-10mm-12 |
10 |
3/4 |
7.9 |
27 |
48.0 |
|
HC1-12mm-2 |
12 |
1/8 |
4.8 |
22 |
38.8 |
|
HC1-12mm-4 |
12 |
1/4 |
7.1 |
22 |
43.4 |
|
HC1-12mm-6 |
12 |
3/8 |
9.5 |
22 |
43.4 |
|
HC1-12mm-8 |
12 |
1/2 |
9.5 |
22 |
49.0 |
|
HC1-12mm-12 |
12 |
3/4 |
9.5 |
27 |
50.5 |
|
HC1-14mm-4 |
14 |
1/4 |
7.1 |
24 |
44.1 |
|
HC1-14mm-6 |
14 |
3/8 |
9.5 |
24 |
44.1 |
|
HC1-14mm-8 |
14 |
1/2 |
11.1 |
24 |
49.0 |
|
HC1-15mm-8 |
15 |
1/2 |
11.9 |
24 |
49.0 |
|
HC1-16mm-6 |
16 |
3/8 |
9.5 |
24 |
44.1 |
|
HC1-16mm-8 |
16 |
1/2 |
11.9 |
24 |
49.0 |
|
HC1-16mm-12 |
16 |
3/4 |
12.7 |
27 |
50.5 |
|
HC1-18mm-8 |
18 |
1/2 |
11.9 |
27 |
50.5 |
|
HC-18mm-12 |
18 |
3/4 |
15.1 |
27 |
50.5 |
|
HC1-20mm-8 |
20 |
1/2 |
11.9 |
30 |
52.3 |
|
HC1-20mm-12 |
20 |
3/4 |
15.9 |
30 |
52.3 |
|
HC1-22mm-12 |
22 |
3/4 |
15.9 |
30 |
52.3 |
|
HC1-22mm-16 |
22 |
1 |
18.3 |
35 |
57.1 |
|
HC1-25mm-8 |
25 |
1/2 |
11.9 |
35 |
57.5 |
|
HC1-25mm-12 |
25 |
3/4 |
15.9 |
35 |
57.5 |
|
HC1-25mm-16 |
25 |
1 |
21.8 |
35 |
62.3 |
Double ferrule fitting has many good adavantage like below
1.Good sealing
2.Pressure resistant and durable
3.Not easy to rust
4.Wide range of use
5. convenient installation and maintenance
Huan cheng Double ferrule tube fitting use precision stainless steel material . food grade material grade. Using High precision automatic equipment is adopted to make the product thread more accurate and match to internation standard and no burr ,keep fittings no leakage problem .Nut with silver plating and back ferrule heat treatment .that can make fitting use life more long .And each fitting will test pressure before goods send out to ensure all fittings is perfect when customer receivied . Thread will use thread protector to protect well in order to thread damage when goods on the transport .
