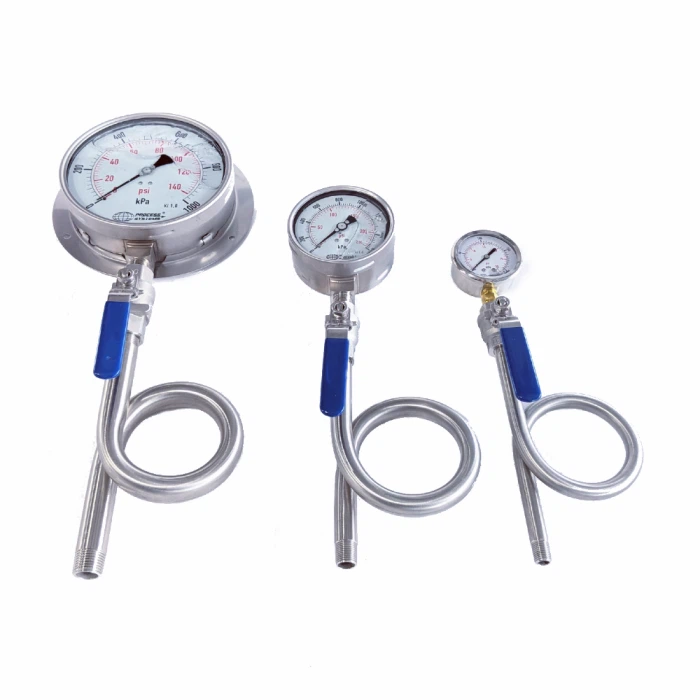

Stainless Steel Siphon Tube
1.Type : Available in Q type,Plate U Type,Straight U Type
2.Maximum working pressure up to 6000 psig (413 bar)
3.Syphon Pipe :½” Pipe Sch 40 or 80 or 120
4.Working temperature from -20°F to 900°F (-28°C to 482°C)
5.Material : we can do stainless steel 316/ ss304 , carbon steel
Product Description
Product name : stainless steel Siphon Tube Q shape
1.Type : Available in Q type,Plate U Type,Straight U Type
2.Maximum working pressure up to 6000 psig (413 bar)
3.Syphon Pipe :½” Pipe Sch 40 or 80 or 120
4.Working temperature from -20°F to 900°F (-28°C to 482°C)
5.Material : we can do stainless steel 316/ ss304 , carbon steel
6.Connection : Male x female
7.Thread : S/W,Screwed.NPT,BSP,Male/Female,Swivel type.
8.Tube size: 14*3 mm SCH40,SCH80
9.Installation : O Type Syphons:The Coil Syphon is normally used for vertical installations.
10.The U Type Syphon is normally used forhorizontal installations.
Order Information
| Part No. |
material |
type |
Inlet |
out let |
|
CSOFM0104 |
carbon steel |
O type |
1/4 NPT Male |
1/4 NPT Female |
|
SSOFM0104 |
stainless steel |
O type |
1/4 BSPT Male |
1/4 BSPT Female |
|
CSOMM0104 |
carbon steel |
O type |
1/4 NPT Male |
1/4 NPT Male |
|
SSOMM0102 |
stainless steel |
O type |
1/2 NPT Male |
1/2 NPT Male |
|
CSUFM0102 |
carbon steel |
U type |
G 1/2 |
G 1/2 LH |
|
SUFM0102 |
steel |
U type |
G 1/2 |
G 1/2 LH |
|
Note: Accept customization, BSP BSPT NPT and other threads (Male to Female Swivel) |
||||
Syphon tube major in chemical, marine, aviation and nuclear industry, has a special significance in the high temperature, high pressure and acid corrosion environments.Our company Stainless Steel 304 Syphon Tube in Types like Pigtail Syphon, Q Shape Syphon, U Shape Syphon, Coil Form Syphon, Trumpet Shape Syphon, Q Type Pigtail Syphon 180 Degree, U Type Syphon 270 Degree, U Type Syphon 90 Degree, Q Type Syphon 90 Degree, Q Type Steam Syphon 90 Degree
Application

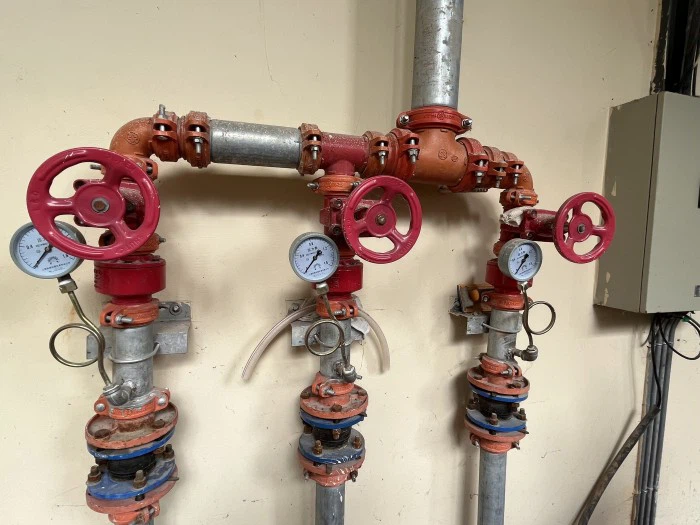

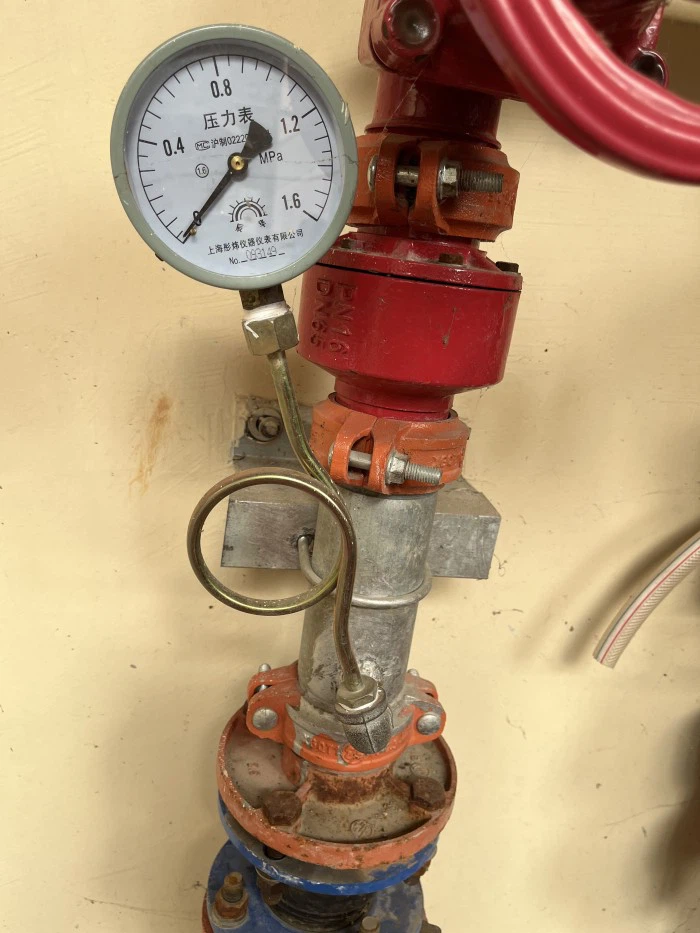

Syphon is often used in conjunction with a gauge cock or isolation valve. This helps reduce the temperature of the medium.Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges
