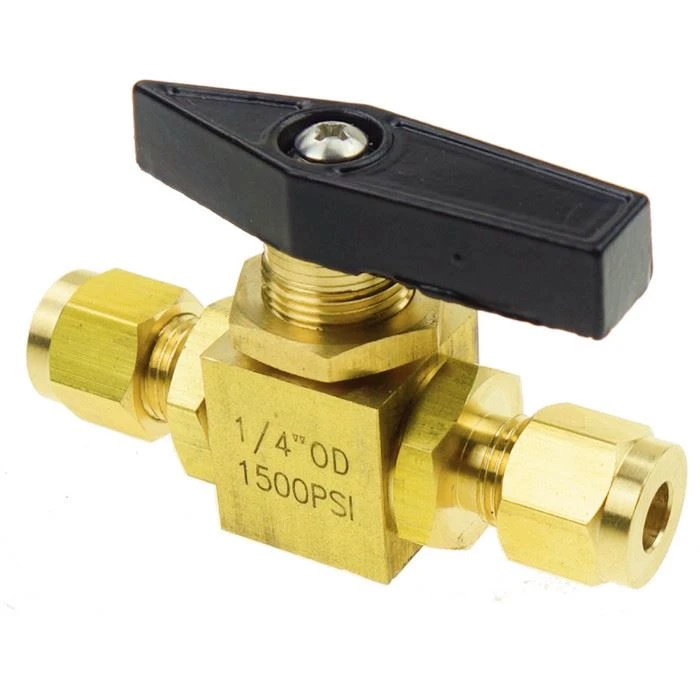

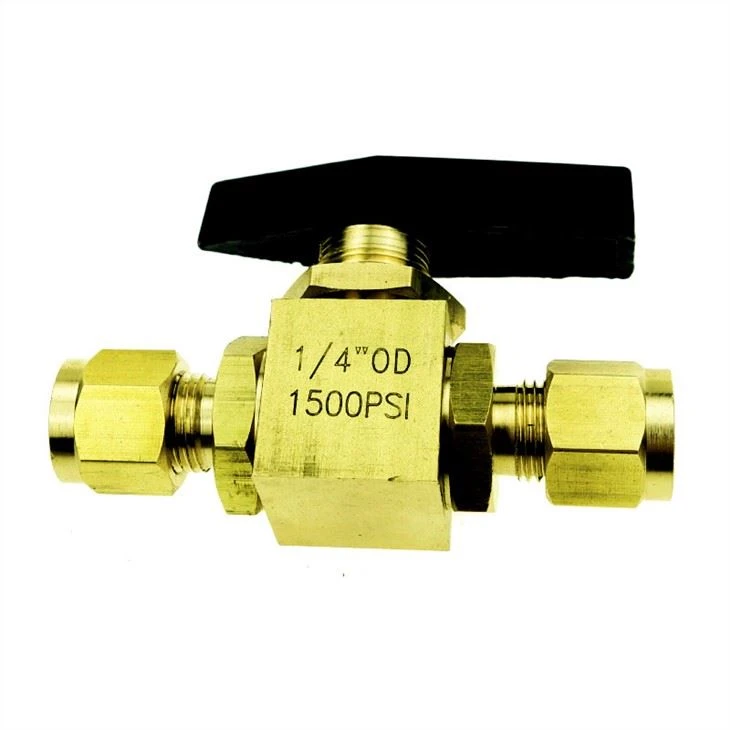

brass double ferrule ball vlave
1.Product name :brass Straight Panel Mount Ball Valve
2.Pressure :1500PSI WOG for 1/8" to 1/4" /1000PSI WOG for 3/8" to 1/2". Temperature Range: -40°F to +300°F ( -40°C to +150°C ).
3.Vacuum Rating: 29.92" Hg.
Products Features
1.Product name :brass Straight Panel Mount Ball Valve
2.Pressure :1500PSI WOG for 1/8" to 1/4" /1000PSI WOG for 3/8" to 1/2". Temperature Range: -40°F to +300°F ( -40°C to +150°C ).
3.Vacuum Rating: 29.92" Hg.
4.Material :Brass body and cap, PTFE ball seats, Viton Stem sealing, Brass Chrome plated ball.
5.Full port for 1/8" to 3/8", Standard Port for 1/2"
6.Panel-mount hole is 9/16" Dia.
7.Available connection: NPT Female, NPT Male and Yor-Lok Tube Fittings (Double Ferrule).
8.Available Handles: Nylon Tee Handle and Zinc Wedge Handle.
9.Compact , maxium-flow design
10.Low operating torque
11.Heavy-duty handle indicates flow direction
12.Bottom-loaded stem,prevents stem blowout,trunnon-style ball
13.Brand :HC-VALVE
14.Country of Original : Made in china , Zhejiang

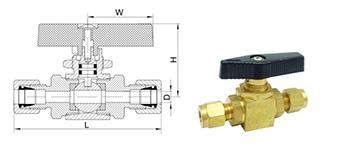

Order Information
| Part Number |
Connections |
L |
D |
W |
H |
|
BDBV408 |
1/2" OD |
3.11" |
0.39" |
1.54" |
1.50" |
|
BDBV406 |
3/8" OD |
2.67" |
0.24" |
1.54" |
1.42" |
|
BDBV404 |
1/4"OD |
2.59" |
0.20" |
1.18" |
1.30" |
|
BDBV402 |
1/8"OD |
2.48" |
0.09" |
1.18" |
1.30 |
About This Item
HC brass Double ferrule straight type tube ball valve isdesigned to provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact attractive package. This plug valve offers a patented blow-out resistant seat design that improves cycling and pressure performance. In addition to on-off actuation, the plug design allows forward flow throttling.
Packing & Shipping
