stainless mini ball valve
1.Pressure :1000psi /PN63
2.Reduce port
3.Investment casting
4.Blow-out proof stem
5.Sanitary design
Products Features
1.Pressure :1000psi /PN63
2.Reduce port
3.Investment casting
4.Blow-out proof stem
5.Sanitary design
6.Thread standard :ASME B1.20.1, BS21.0,DIN2999/259, ISO228-1,JIS B 0203,ISO7/1
7.Inspection Testing :API598 .EN12266
8.Thread type :NPT, G, BSPT,BSPP ,RC

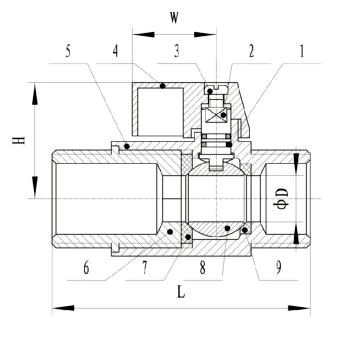

Part Material list
|
Item |
Designation |
Material |
|
1 |
O-ring |
NBR |
|
2 |
Stem |
SUS304 |
|
3 |
bolt |
SUS304 |
|
4 |
Lever |
Aluminum alloy/CF8 |
|
5 |
Body |
CF8/CF8M |
|
6 |
Cap |
CF8/CF8M |
|
7 |
Ball seat |
RPTFE |
|
8 |
Ball |
CF8/CF8M |
|
9 |
Ball seat |
RPTFE |
Dimension tabe
|
Item Size |
1/8’’ |
1/4’’ |
3/8’’ |
1/2’’ |
3/4’’ |
1’’ |
|
|
D |
7 |
7 |
7 |
9.2 |
12.5 |
15 |
|
|
H |
26.5 |
26.5 |
26.5 |
28.3 |
31.5 |
34 |
|
|
W |
22.8 |
22.8 |
22.8 |
22.8 |
22.8 |
22.8 |
|
|
L |
50 |
50 |
50 |
58 |
71.5 |
83 |
About This item
1.High strength zinc plating, process is strong and durable, it is not easy to deform .and it is not easy to break.
2.Full thread safe and easy to use wider application
3.The extinction appears trachoma,the appearance is more beautiful
4.Precision appearance of silica SOL process, easy to disassemble ,safe and secure
