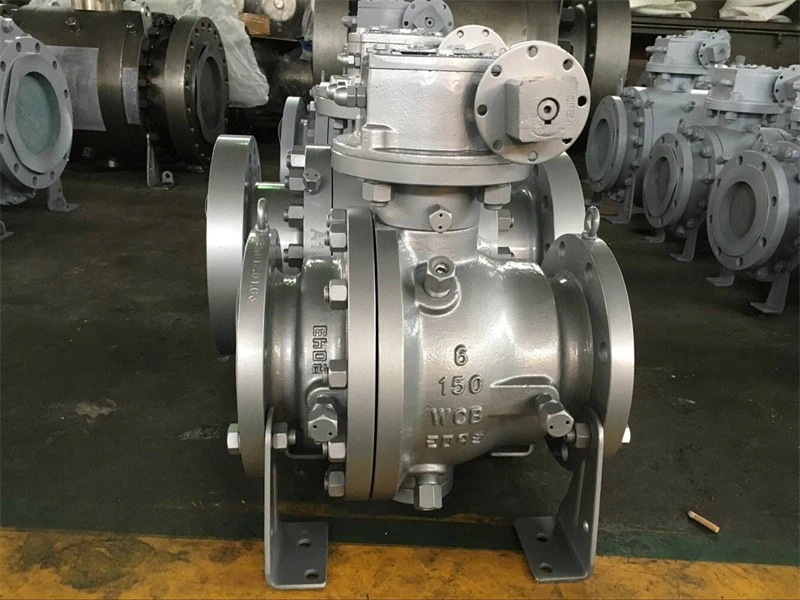

Trunnion Mounted Ball Valve

General description

1. Functions.

Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. It is easy to operate; it only needs to rotate 90 degrees to achieve rapid opening and closing, making it one of the fastest developing valve varieties in the past decade.

Ball valve can be in forged steel and cast steel, floating ball or trunnion ball. All ball valves are full port and meet the design requirements of API 6D, BS5351, ASME B16.34.Valves are in a complete range of body/bonnet materials and trims.

2. Applied standards

Forged steel ball valves as per API 608/API 6D/BS5351

Fire safe as per API 607/API 6FA

Anti-static as per API 608

Pressure-temperature as per ASME B16.34

Face to face as per ASME B16.10

End connection: ASME B16.5

Butt-welding ends as per ASME B16.25

Inspection and test as per API 598/API 6D

3. Specifications.

NPS 3/8"-42",

Pressure 150LB-2500LB.
