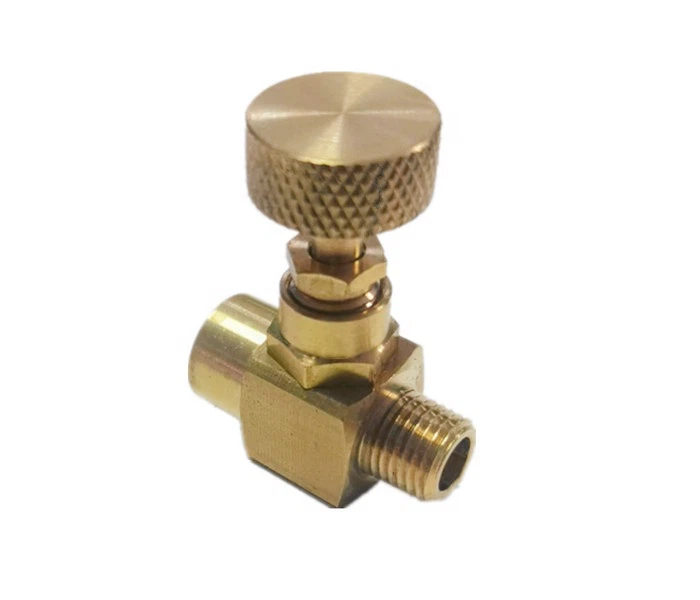

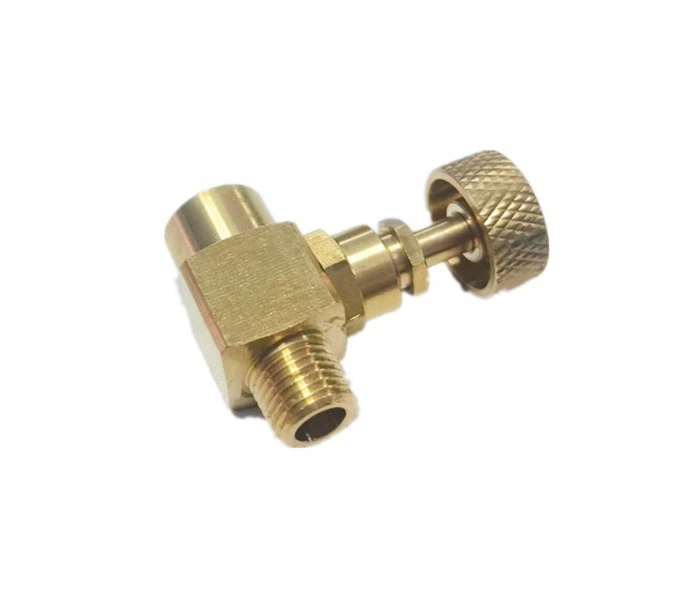

brass female needle valve
Brass male to female Needle Valves are designed to regulate flow to an instrument or other industrial application..open or cut off the pipeline path. They are rugged enough for the oil & gas market
Products Details
|
Product Name |
Heavy Duty Brass Instrument Replacement Control Needle Valve (female to male ) |
|
Connection |
1/4″ FPT Inlet x 1/4″ MPT Outlet |
|
Material |
C36000 brass |
|
Surface treatment |
Original brass . Cleaning,passiving,electro polishing |
|
Media |
Water,Gas,Oil,Fuel,etc |
|
Applying field |
gases, air, oil and water. For medium pressure applications |
|
Working pressure |
1000psi |
|
Temperature range: |
-20F to 300F(-28℃ to 151℃) |
|
More Connection type |
Female x male |
|
MOQ |
1.If have stock. No quantities requirements 2.If out of stock ,MOQ 100pcs |
|
Manufacturer |
Huan cheng valve ,made in china |
|
Samples time |
1-7days |
|
Payment term |
30% deposit ,70% balance before goods ship out |
Order Information
| Part Number |
MNPT |
FNPT |
|
360BNV02 |
1/8'' |
1/8'' |
|
360BNV04 |
1/4'' |
1/4'' |
|
360BNV06 |
3/8'' |
3/8'' |
Products Description
●Brass male to female Needle Valves are designed to regulate flow to an instrument or other industrial application..open or cut off the pipeline path. They are rugged enough for the oil & gas market
●The flow works in either direction. If it leaks, you can replace the O ring inside with pliers, or a bit of Teflon tape is recommended for sealing on both end.
●Brass screw bonnet needle valve Made of high-grade solid brass, exquisite processing, can withstand greater pressure than other types of valves, good sealing performance, if you need a long time and stable control, it is best to use it with a regulator
●It can be used to open and close the propane. If you need a long time and stable control, it would be better to use with a regulator.
●If it leaks, you can replace the O ring inside with pliers, or a bit of Teflon tape is recommended for sealing on both end.
Products Features
●Compact size valve built for maximum durability
●100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance
●FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional
●All stems are 316 stainless steel
●All stem threads are rolled for strength and ease of operation
●Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve
Applications
●Suitable for fuels, water and air
●Precision instrumentation
●Hydraulic Control Systems
●Anywhere precise control is needed
Packing & Delivery

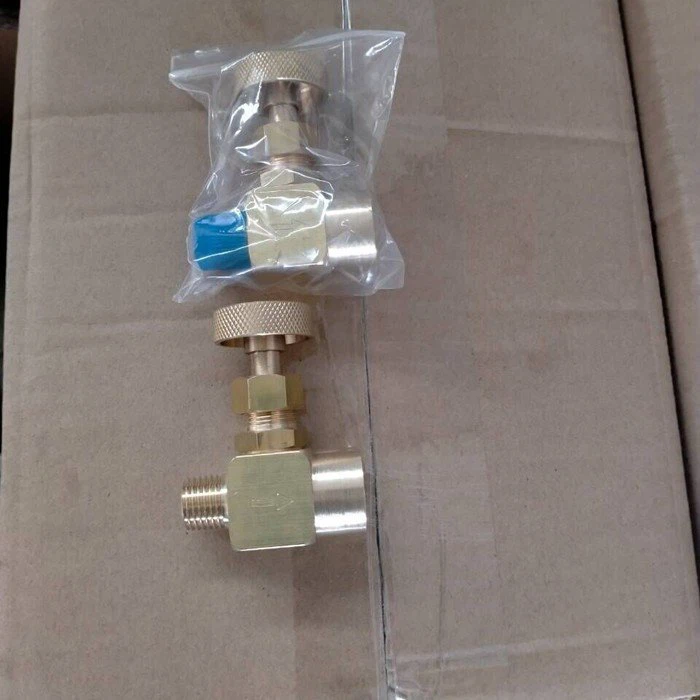

●Package : 1pc needle valve is packed into a corrugated paper box, 100pc needle valve into one export carton, and pallet. Or as the requirement of customer.
●Logo can laser or engrave on the valve body . logo letters according to customer requirements
●Loading Port: shanghai /Ningbo port china
