Two Piece Ball Valve

2.Blow-out-proof stem design

3.Padlocking device

4.Design:ASME B16.34

5.End Connections :Threaded End

6.Thread type : NPT,BSPT ,BSPP

7. Lockable Handle , Size: 1/4" to 4"





1.Working Pressure :1000psi

2.Temperature Range:-20℃ to 302℉ for PTFE

3.Applicable medium :Water .oil, Gas

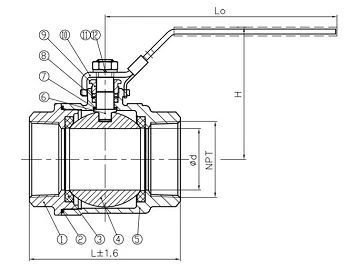

	No	Description	QTY	Material
	1	Bonnet	1	A351 CF8M
	2	Gasket	1	PTFE
	3	Seat	2	PTFE
	4	Ball	1	SS316
	5	Body	1	A351 CF8M
	6	Stem	1	316SS
	7	Stem washer	1	PTFE
	8	Packing	1	PTFE
	9	Gland	1	304SS
	10	Handle	1	STEEL
	11	Spring washer	1	304SS
	12	nut	1	A194 8

Remark:Pls contact us for other material requirments





Order information



  The stainless steel 2 piece ball valve has one body joint which means the body is composed of 2 pieces, hence the name “two piece”. This 2 piece body allows a larger ball to be installed at the time of manufacture, which makes this a full bore or full port ball valve.Full bore means that the bore hole in the ball has the same inside diameter as that of the piping it is connected to. The advantage is that there is no pressure drop and flow rate is unaffected.They provide a simple on/off flow, as well as the ability to control flow rate by opening and closing to different degrees, this process is called throttling

  1.ball valve made from stainless steel is robust and generally has a long service life. It possesses excellent properties, such as corrosion and abrasion resistance and the ability to handle extreme pressures and temperatures. It can also handle  cryogenic applications and those that handle toxic media. Because of its durability,this valve also requires less maintenance.

  2.Since it can handle different types of fluid, the ball valve can be used for almost any industrial application. These include oil and gas, pulp and paper, pharmaceuticals, water, wastewater treatment, and manufacturing facilities.

  3.Quick and easy to install, threaded valves are easy to use and require no tools for installation.

Design standard: ansib16 thirty-four

Wall thickness standard: ANSI B16 thirty-four

Thread standard: ANSI B1 20.1,BS21，DIN 2999/259,ISO 228/1，JIS B0203,ISO 7/1

Test standard: MSS sp-110, en 12266; API 598； ISO 5208
