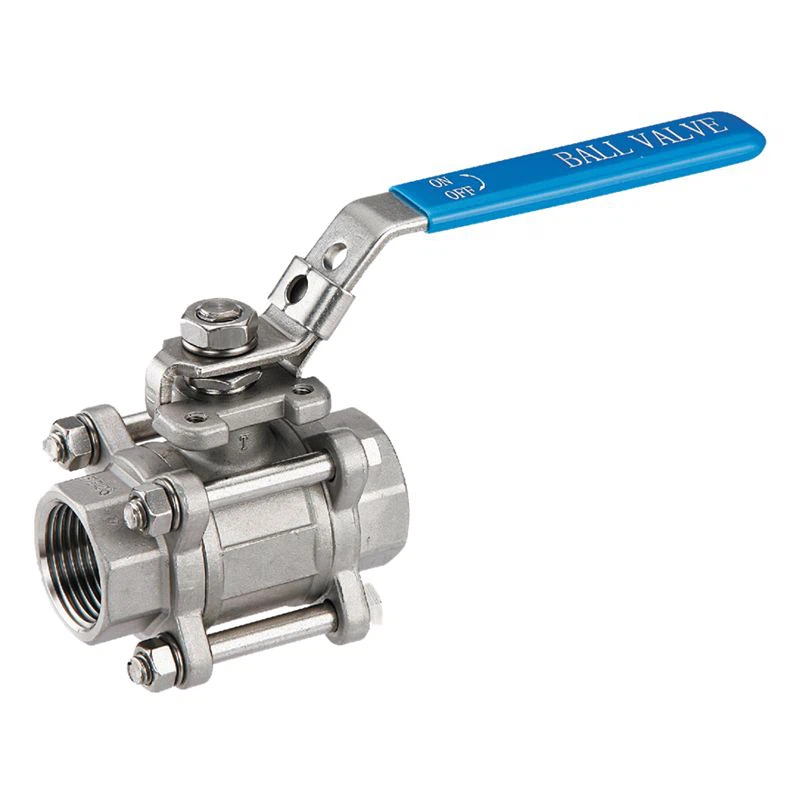

Three Piece Ball Valve

1.Available in High / Direct Mounted
Size: 1/4" to 4"(DN8-DN100)

2.Thread : BSPP/BSPT/NPT/DIN 2999-259/ISO 228-1

3.Material : WCB、CF8、CF8M 、Duplex stainless steel 2205

4.- Investment Casting Stainless Steel with Full Port Body

5.- Available in Direct / High-Mounted Design

6.- NPT Threaded End Connection (ANSI B1.20.1)

7.- Direct / High Mounting Pad Fully Complies with ISO 5211

8.- Lockable Handle in both Low or High-Mounted Design

9.-Blow-Out-Proof Stem Design

10.-Seat Material : PTFE, R-PTFE, or High-Temp PTFE

11.- For Water, Oil, or Gas Medium Application

12.- Design fully complies with ASME B16.34

13.- Tested and Inspected in accordance to API 598

14.-Working pressure : W.P.:1000WOG(PN63)

15.-Working Temperature range : W.T.:-20℃-180℃

  Stainless steel three piece ball valves are used in petroleum, natural gas, coal and ore mining, refining and processing and pipeline transportation systems, in chemical products, medicine and food production, in hydropower, thermal power and nuclear power power power production systems, in water supply and drainage, heat supply and gas supply systems of urban and industrial enterprises, and in farmland drainage and irrigation systems, It is widely used in metallurgical production system. It is an important mechanical product closely related to production and construction, national defense construction and people's life. The ball valve is sealed in various pipeline systems to cut off and connect the medium flow, so that the medium is suitable for PN1 according to the three piece internal thread ball valve and butt welding ball valve 0-4.0mpa, working temperature - 29-180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) or - 29-300 ℃ (the sealing ring is aligned polystyrene), which is used to cut off or connect the medium in the pipeline. Different materials can be used for water, steam, oil, nitric acid, acetic acid and other media. The predetermined program is delivered to each designated point

1.One Among all kinds of valves, the flow resistance of the ball valve is the smallest. When the full diameter ball valve is opened, the ball channel, the valve body channel and the connecting pipe diameter are equal and weigh one diameter. The medium can flow almost without loss. The direction of the valve can be arbitrarily selected and has a two-way function

2.Two It is easy to operate and switch quickly. The ball valve can be fully opened and closed by rotating 90 °. It can be opened and closed quickly. Pneumatic and electric can be adjusted arbitrarily. Compared with the gate valve and stop valve of the same specification, the ball valve has the advantages of small volume, light weight, good energy-saving effect and convenient pipeline installation

3.Three The connection methods of valves and pipe fittings produced by the company include: internal thread, flange, butt welding, plug welding, quick connection, etc. they can be installed in horizontal pipeline and vertical pipeline

4.Four According to the requirements, the ball valve can be designed into an anti-static structure. A conductive spring is set between the ball and valve rod, and between the valve rod and valve body to avoid static ignition and ignition of flammable substances and ensure the safety of the system

5.Five The anti leakage effect is good, and the service life of the switch can be 5-10 times higher than that of other equipment
