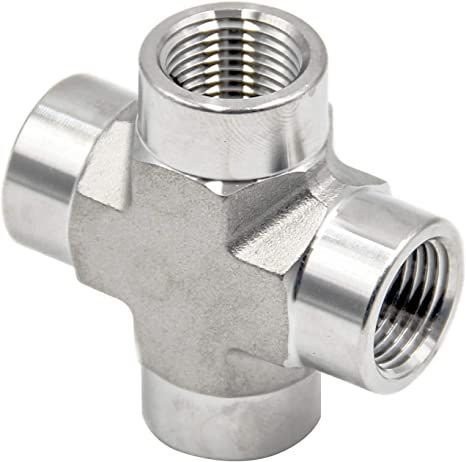

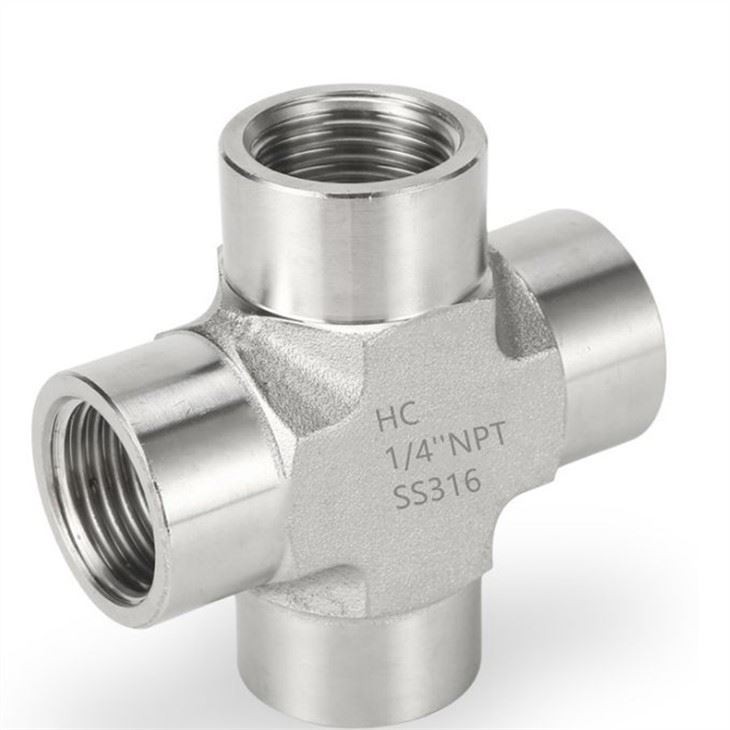

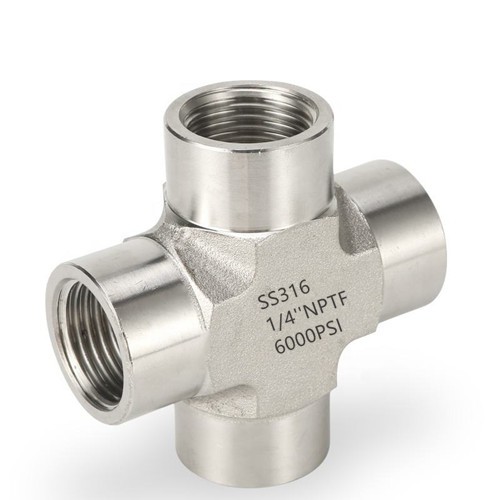

High pressure thread Cross
1.Product Name : stainless steel female cross
2.Body material :Stainless steel
3.Size :1/4’’NPT equal male
4.Connection type :cross
5.Thread type :NPT
Products Description
1.Product Name : stainless steel female thread cross
2.Body material :Stainless steel
3.Size :1/4’’NPT equal male
4.Connection type :cross
5.Thread type :NPT
6.Working Temperature： from -868 to 1472 degrees F/-500 to 800 degrees c.
7.Maximum Pressure: 3000psi (286bar )
8.More description product Name :4 way female cross / 4 way female stainless steel cross /inox fittings /1/4’’female cross fitting
4 Way Thread Cross Coupling Connector
Products information
| Product Name |
Stainless steel female thread cross / forge cross fitting |
|
Material |
ASTM A182 F304, 304L, 316, 316L, 317, 321, 347, 904L, 310S.brass ,carbon steel .Duplex steel |
|
Size |
1/8’’to 2’’in |
|
Thread type |
BSPT , BSPP , G, NPT ,SAE, UNF |
|
Lenght |
Standard |
|
Working temperature: |
-868 to 932 degrees F/-500 to 800 degrees C. |
|
Connection type |
Male x male x male / female x female x male/ female x male x male |
|
Working pressure |
3000psi |
|
Surface color |
Silver , Sand blasting , polish |
|
Shape |
Equal or Reducing |
|
Usage |
Petroleum,chemical, power,Electronics,Machinery, shipbuilding, hospital etc. |
|
Working Media |
Water ,oil ,gas |
|
About drawing |
We can offer CAD drawing .custom design according to customer request |
|
Samples |
Samples can be offered by free charge |
|
Country of original |
Made in china |
|
Brand |
HC-VALVE |
|
Logo |
Any logo can print by customer request |
|
Payment way |
TT USD bank ,paypal ,western union,money gram |
|
Package |
|
|
Delivery time |
|

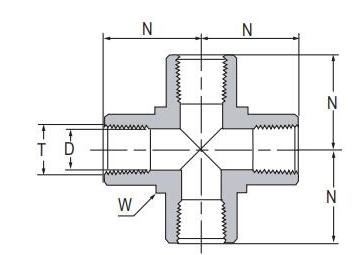

Products Order information
|
Part Numer |
T (NPT) in |
W(Hex mm) |
Picture |
|
SFC-2-2 |
1/8-27 |
17.4 |
|
|
SFC-4-4 |
1/4-18 |
20.8 |
|
|
SFC-6-6 |
3/8-18 |
23.8 |
|
|
SFC-8-8 |
1/2-14 |
27.0 |
|
|
SFC-12-12 |
3/4-14 |
33.0 |
|
|
SFC-16-16 |
1-11-1/2 |
38.0 |
|
|
All reducing sizes are available |
|||
Products Performance
A stainless steel pipe thread cross is a type of pipe fitting that has four female threaded ends of equal size and shape, arranged in a cross pattern. The fitting is typically made of stainless steel, a corrosion-resistant alloy that is ideal for use in harsh or corrosive environments.
The threaded ends of the cross allow for easy connection to other pipes or fittings, making it a versatile component in plumbing, heating, and industrial applications. The cross shape allows for fluid or gas to flow in four directions, making it useful in applications where multiple pipes need to be connected.
When selecting a stainless steel pipe thread cross, it's important to consider the size and thread type of the fitting, as well as the material's compatibility with the fluid or gas being transported. It's also important to ensure that the cross is rated for the appropriate pressure and temperature range for the specific application.
1.Connection:NPT-NPT-NPT-NPT.Measurement: 1/4"
2.Easy and convenient to install,An ideal Female Cross Connector
3.Shape:4 Ways Connector Fittings(Female x Female x Female x Female)
4.Durable Stainless Steel 304,cross shaped, 4 ways, equal female thread, etc
5.Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc
