Three Way Valve Manifolds
Item material: 304ss, 316ss, 2507, 2205duplex steel, Monel400, Hastelloy
Working pressure: 6000psi(413bar),max pressure can be 10000psi (689bar)

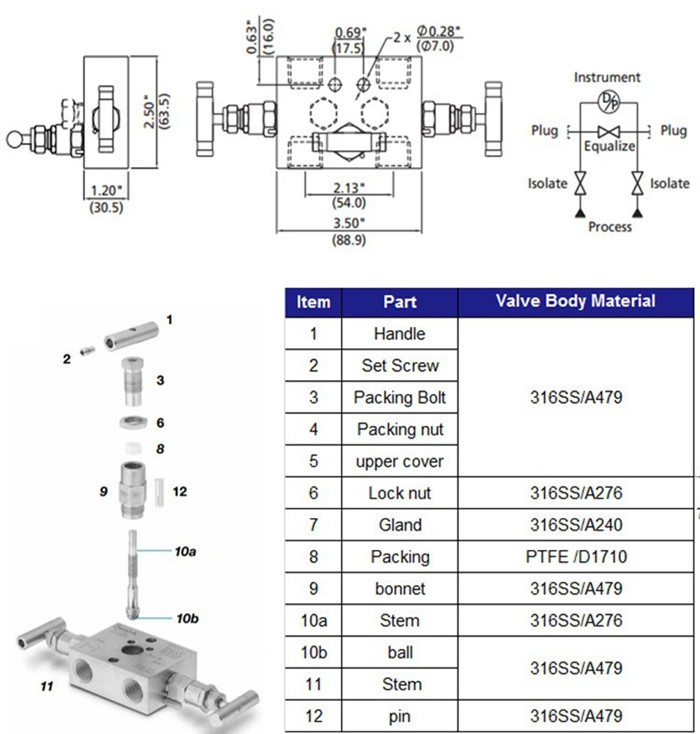

Products Specification
|
Product name |
Stainless steel high pressure 3 way manifold valve stainless steel manifold rosemount transmitter |
|
Item material |
304ss,316ss,2507,2205duplex steel,Monel400, Hastelloy |
|
Working pressure |
6000psi(413bar), max pressure can be 10000psi (689bar) |
|
Working temperature |
PTFE packing from -65°F to 450°F (-54°C to 232°C) Peek packing：-38℃ - 280℃ (-100℉ - 536℉) |
|
Connection |
1/2’’NPT FEMALE |
|
Vent connection |
1/4’’NPT FEMALE |
|
Bolt thread |
UNF 7/16-20, M10*1.5, M12*1.75 |
|
Use media |
Liquid ,steam , gas |
|
Manifolds |
2way,3 way , 5 way |
|
Valve type |
Available direct or remote mounting isolation, calibration and vent |
Products Description
Our three way valve manifolds can be Customizable material: 304SS/316L stainless steel, carbon steel, brass, Hastelloy, etc.Customizable connection: welding type, flange type, female thread,male thread, ferrule type, etc.Applicable media: oil pipes, water pipes, gas, water treatment, chemical machinery and other general media
The three-valve manifolds is used in conjunction with pressure transmitters or pressure gauges. The function of the two valve manifolds is to connect or cut off the positive and negative pressure chambers of the differential pressure transmitter and the pressure point, or to cut off or connect the positive and negative pressure chambers. The three way valve manifolds is generally used in on-site control instruments to provide multiple channels for the instruments, reduce installation work time and improve system reliability. Valve manifolds is connected to the process connection of the transmitter, and the specifications generally have two types: 1/2NP and 1/4NPT. The inlet part has the same specification as the pipe, generally there are φ12, φ14, φ16, φ18. The valve manifolds is mainly divided into two way valve manifolds ,three way valve manifolds,five way valve manifolds .They are working on high pressure can be reach to 6000psi .special material can be up to 10000psi
|
Order Part Number |
Inlet/process |
Outlet/instrument |
Test /vent |
|
3VML08MF |
1/2’’NPT female |
1/2’’NPT male |
1/4’’NPT female |
|
3VML08M |
1/2’’NPT female |
1/2’’NPT male |
1/4’’NPT female |
Scenaro Examples
|
Trade Information |
|
|
Trade terms |
FOB, CIF ,EXW |
|
MOQ |
No MOQ |
|
Export |
Shanghai,Ningbo ,or air |
|
Shipment way |
By sea, air , express |
|
Payment terms |
TT,western union,paypal ,money gram |
|
Payment condition |
30% before production,70%before delivery |
|
Packing |
Inner box, carton box ,wooden case |
|
Service |
OEM,ODM or customized |
|
Production capacity |
5000set/per month |
|
Lead time |
According to whether we have stock ,if no stock 7-15days normally |
|
Country of original |
Zhejiang, china |
|
Brand |
Can laser customer’s logo on the valve body |
Our Advantage:
1.Ensure the quality ,and the application period of real materials is long
2.Thoughtful service,follow-up of pre-sales and after-sales service
3.Factory direct supply can be customized according to demand.24hours online service
4.All shipment goods will test 100%,and shipment with pressure test report ,material certificate, quality assurance
5.Unqualified products can be replace with free cost and free freight

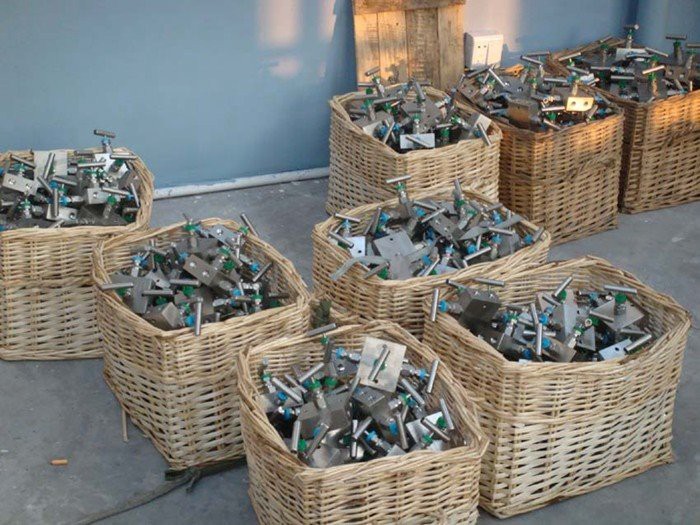

Packing & Shipping
